3.5 Icon Editor
MetaEdit+ will automatically create small icon versions of
your Object, Relationship and Role symbols to display in toolbar buttons, menus,
lists etc. All elements except property and generator labels will be included,
and all conditions will be treated as true. If there is no symbol, or if the
only elements in the symbol are texts that would be too small after scaling to
the size of the icon, MetaEdit+ will build toolbar buttons with an abbreviated
form of the type name.
To override the automatically created icons for Object,
Relationship and Role symbols, or to specify icons for Graph and Port types
(which have no symbols), you can define a specific icon with the Icon Editor. As
there are different sizes of icons used in the toolbar and lists, and between
different platforms, the icon is defined as a vector graphic. You can of course
use a bitmap as the sole element of the icon, although scaling to different
sizes may then not be ideal.
The Icon Editor (shown in
Figure 3–26) is thus a vector
graphics editor, effectively a subset of the Symbol Editor described in Sections
3.1–
3.3. There are no connectables, no property
or generator labels, and no conditions.

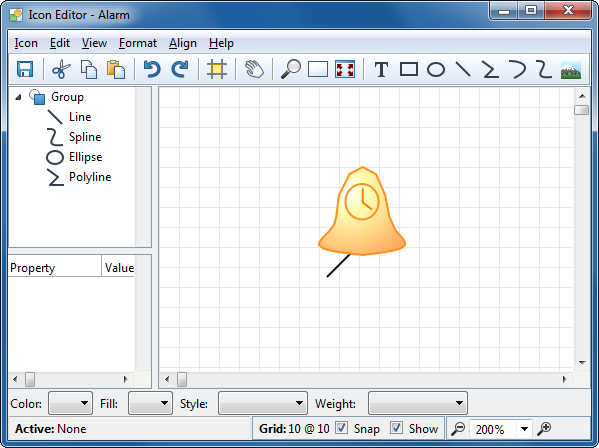

Figure 3–26. Icon Editor.
