4.3 Creating generators

4.3 Creating generators

Previously we used predefined generators to output reports for our Family Tree diagram. However, to get the most out of our modeling language, we can make new domain-specific generators. Let us now explore how you can create generators of your own. Please note that if you have used different names for your metatypes than those presented in this tutorial (like ‘Given name’ instead of ‘First name’) while creating the metamodels, you have to use your own naming conventions in these example generators too!

In the Diagram Editor, select Graph | Edit Generators... to open the Generator Editor. The Generator Editor, as shown in Figure 4-15, is a tool for creating, maintaining and running generators.

Figure 4-15. The Generator Editor.

To create a new blank generator definition, press New in toolbar or select Generator | New... in the Generator Editor and enter ‘My HTML generator’ as the name for the new definition. MetaEdit+ now shows the basic definition template in the editing area. Modify the definition to look like this:

Report 'My HTML generator'

foreach .()
{
	id
	newline
}

endreport

Save the modified definition by pressing Save in toolbar or selecting Generator | Save (if there are syntax errors, please check that you have typed the definition correctly). Your generator now appears in the top-left list in the Generator Editor window. Make sure that this generator is selected and press Generate in toolbar or select Generator | Generate.... You are now prompted to select the graph on which the generator will be run. Choose your Family Tree diagram and press OK. MetaEdit+ now generates the output that should appear as in Figure 4-16.

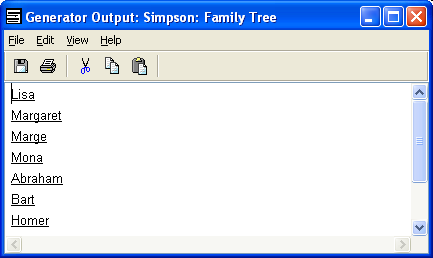

Figure 4-16. The results of running our own generator.

What our generator did was to loop through all objects in a graph (foreach .()), print their identifying property – First name in this case – (id) and put a carriage return at the end of each line (newline). This is the basic structure of our generators: we loop through the concepts we have presented in our diagrams, extract information from them and print it out.

Printing out just the names of the members of our Family Tree is hardly a good reason to write a generator of your own. But a generator that output the members of the family and their parent/child relationships in a list form, on the other hand, would be useful for various purposes. Let us modify our generator to do this. What we need to do is to check for each person whether he or she is in either a Parent or Child role (or in both) in a relationship and if such roles exist, print out the information from the other end of the relationship. Modify your generator as follows (you don’t have to enter the comment texts that are shown between /* and */):

Report 'My HTML generator'

foreach .()
{
	/* Print out name of person */
	'Person: ' id newline

	/* Print out the parents */
	'   Parents: '
	do ~Child>Family~Parent.()
	{
		id ' '
	}
	newline

	/* Print out the children */
	'   Children: '
	do ~Parent>Family~Child.()
	{
		id ' '
	}
	newline
}

endreport

Save the generator again (Save in toolbar or Generator | Save) and run it (Generate or Generator | Generate...). You should now get a list of Persons with information about their parents and children. The roles (~Parent and ~Child) and relationship (>Family) of the current object are followed to its related objects by the ‘do’ loop.

The next exercise will be the big one. We are going to write a generator that produces a web page with a picture of our Family Tree diagram and information about each person. In the picture you can click on any Person to get his or her information, including the information about parents and children. Furthermore, parents and children have been linked to their respective Person information entries. The generator also automatically opens the page in your browser. The definition that does all this looks like this:

Report 'My HTML generator'

/* Open a HTML file for output */
filename
subreport '_default directory' run
:Family name; '.html'
write

/* Create HTML header tags */
'<html>' newline
'<head><title>The ' :Family name;
' Family Tree</title></head>' newline

/* Create HTML document body */
'<body>' newline
'<h1>The ' :Family name;
' Family Tree</h1>'

/* Create picture (with image map) */
filename
subreport '_default directory' run
oid '.gif'
print
'<img src="' oid
'.gif" border=0 usemap="#'
subreport '_default directory' run
oid '.gif">' newline
'<br><br><hr>' newline

/* Generate Person entries */
foreach .()
{
	/* The name */
	'<a name=' oid '><h3>' id ' '
	:Family name; '</h3>' newline

	/* Date of birth */
	'Date of birth: ' :Date of birth;
	'<br><br>' newline

	/* Date of death */
	'Date of death: ' :Date of death;
	'<br><br>' newline


	/* The parents */
	'Parents: '
	do ~Child>Family~Parent.()
	{
		'<a href=#' oid '>' id
		' ' :Family name; '</a> '
	}
	newline '<br><br>' newline

	/* The children */
	'Children: '
	do ~Parent>Family~Child.()
	{
		'<a href=#' oid '>' id
		' ' :Family name; '</a> '
	}
	newline '<br><br><hr>' newline
}

/* Create HTML footer */
'</body>' newline
'</html>' newline

/* Close the output file */
close

/* Launch the web browser */
external '"'
subreport '_default directory' run
:Family name;'.html"'
execute

endreport

Save the generator again and run it. Try out the web page that was generated. As you see, it’s basically just a simpler version of the web page we generated with the predefined generator earlier. However, there is one important difference: the new web page demonstrates the domain concepts better than the old one, and this is exactly what we wanted in the first place. General, predefined generators can be useful, but creating your own domain-specific generators is the key to getting the maximum gain out of your Domain-Specific Modeling language.
