5.4.1 Using the Generator Debugger

5.4 Generator Debugger

The Generator Debugger is a tool that helps the development of generators by providing means to follow, control and inspect the execution of a generator. An example of a Generator Debugger window is shown in Figure 5–14.

Generator Debugger

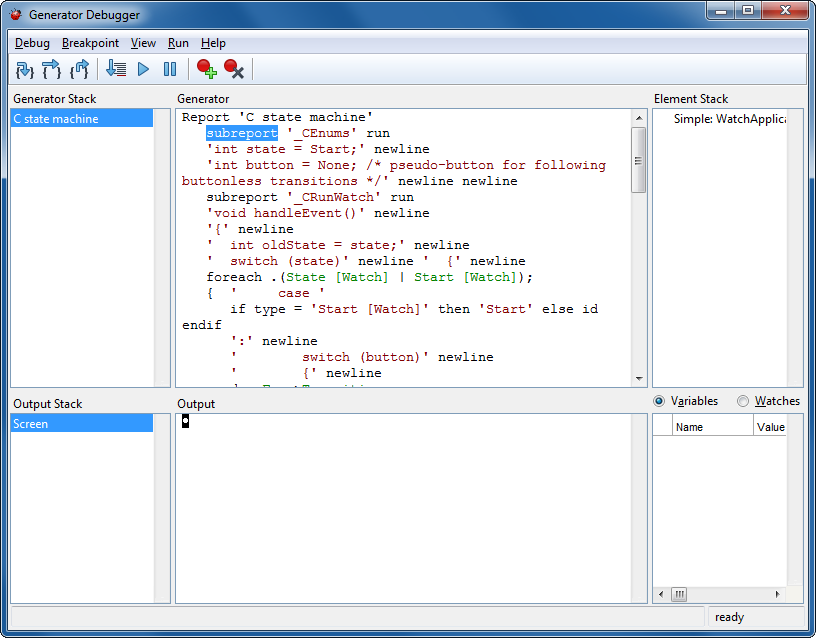

Figure 5–14. Generator Debugger.

At the top of the Generator Debugger window (as shown in Figure 5–14) you will find the usual menu bar and toolbar. Below them is the working area that is divided as follows:

The Generator stack at the top-left corner of the working area provides a list of the generators currently in the execution stack, with the generator currently being executed shown last in the list. The Generator view (top center) contains the definition of the currently executed generator. The generator command that is currently being processed is shown highlighted (please note that it is not possible to edit the generator definition here). The Element stack (top right) displays the stack of design elements that are being accessed by the generator, the currently accessed one being last in the list. The accumulation of this stack is the result of the generator’s navigation structure.

The Output stack (bottom left) shows the target output streams, such as screen, files, etc., used by the generator. The current output is last in the list. The Output view (bottom center) displays the content generated so far on the selected output. The Variables list (bottom right) shows the currently allocated variables with their values.

Pop-up menu commands and/or double-clicking in the Generator Stack, Element Stack or Output panes will take you to the selected element or provide other operations on it.
