2.6.3 Data types

In this section we discuss the data types available in MetaEdit+ and how they appear to users in property dialogs. To set the data type for a property, use the Data Type pull-down list in the Property Tool. If you select a metatype (Graph..., Object..., Port..., Relationship... or Role...) a dialog will prompt for selection of a particular type of that metatype.

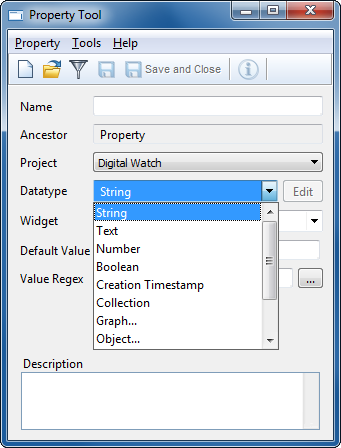

Data type selection

Figure 2–17. Data type selection.

String

The string data type is an ordinary character string without any formatting. Each String property type can have its own Default Value; by default it is empty.

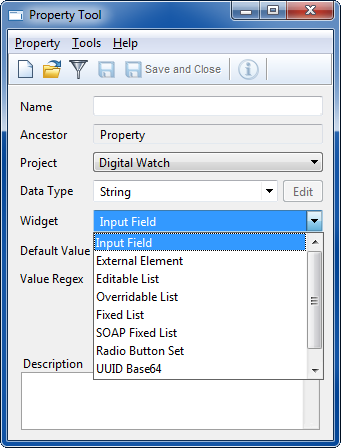

Widget selection

Figure 2–18. Widget selection.

The Widget pull-down list (Figure 2–18) is used to select among a list of possible widgets used in property dialogs for entering a string value. The possible widgets and their settings are described in Section 2.6.4.

Text

Text is used for longer descriptions. The text can contain carriage returns, tabs etc., and also basic text formatting (fonts, bold, italic etc.). The text widget is shown as a multi-line text box with a vertical scroll bar. Text properties can also be opened in a Text Editor, useful for text formatting or longer texts. Each Text property type can have its own Default Value; by default it is empty.

Number

Number can contain any integer, scientific or real number. The widget for number is a single line box. Each Number property type can have its own Default Value; by default it is 0.

Normally, it is better to use a String, since although a property may initially appear to only contain numbers, it may later be found useful to allow some strings too, e.g. to represent common constants. Input can be restricted with the Value Regex field, e.g. using the regex generator at http://utilitymill.com/utility/Regex_For_Range.

Boolean

A Boolean property holds the value true or false. The widget for a Boolean property is a check box. When a Boolean property must be displayed as a string elsewhere in the user interface, it will show T or F. Each Boolean property type can have its own Default Value; by default it is false.

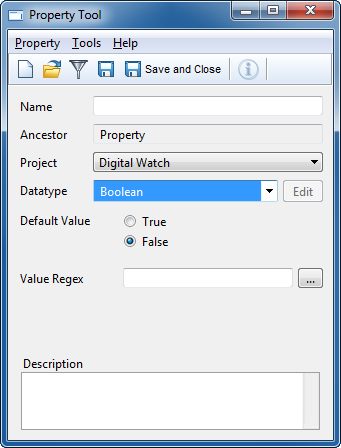

Property Tool with boolean as datatype

Figure 2–19. Property Tool for Boolean.

Creation Timestamp

A creation timestamp stores the element creation time. The value is stored as a UTC timestamp, and offset by the local timezone when displaying. Its value cannot be changed, thus the widget for timestamp is a read-only input field. Creating a new copy of an element containing a creation timestamp (e.g. by Paste Special with deep copy) will result in an entirely new timestamp too.

Collection

The Collection data type defines a list of strings or objects, initially empty, in which the user can add and delete items. The widget for Collection is a list box with a vertical scroll bar.

An example of a collection can be found from the Watch example in type Display, which includes collections of Icons, UnitZones and Buttons. Each of these has properties of their own and these properties could again be collections themselves. MetaEdit+ does not limit the number of such levels of complex properties.

Selecting the Collection data type adds an Item type pull-down list to the Property Tool window, showing the data type of the members of this list. The list members can be strings, graphs, objects, ports, roles or relationships. If you select a metatype (i.e. anything other than String) a dialog will prompt for selection of a particular type of that metatype. That type will then be shown in the Item type field.

When a type is chosen the list members can always be not only of the type specified in the Item type field, but also of any type which inherits from that type. In some exceptional circumstances it may be desirable to specify the supertype of all the types of that metatype, e.g. Object: you can do this by selecting the metatype from the Item type pull-down list with shift held down, and that metatype will then be included in the list of types to select from.

Graph, Object, Relationship, Role

An individual graph, object, relationship or role can also be used as the value of a property. In this section we discuss object types, but the same applies for the other non-property types as well.

The Object data type allows you to specify a property whose content will be an object of a selected type. When you select this data type, the tool further asks you to specify the object type, which is the type of the objects that can be attached to this field. Again, instances of subtypes of this type are also allowed as values for this kind of property. In some exceptional circumstances it may be desirable to specify the supertype of all the types of that metatype, e.g. Object: you can do this by selecting the metatype from the pull-down list with shift held down, and that metatype will then be included in the list of types to select from.

The widget for the Object data type is similar to a String property’s Input Field, except that the background is gray, showing that you cannot type directly there. The box shows the identifier of the currently attached object. In place of the normal text editing operations in the pop-up menu, there are operations for editing the attached object, or opening its representation.

Property Tool with object as datatype

Figure 2–20. Property Tool with a DisplayFn object as the data type.

This data type — containing other non-property instances — is a very powerful tool for several purposes. It can be used for attaching whole objects or graphs into one property of another object or graph type and thus allowing complex data structures.

When the modeler is adding a new element in such a property, if the data type specified in the Property type has subtypes then he will be prompted to choose a subtype to instantiate. Abstract types (i.e. types whose name begins with an underscore, ‘_’) cannot be instantiated, so choosing one will prompt to choose from one of its subtypes. Hidden types (i.e. types whose name begins with a double underscore, ‘__’) will not be shown, but instead replaced in the hierarchy by their subtypes, raised up a level in the hierarchy as if the intermediate level of the hidden type had not been present at all.
